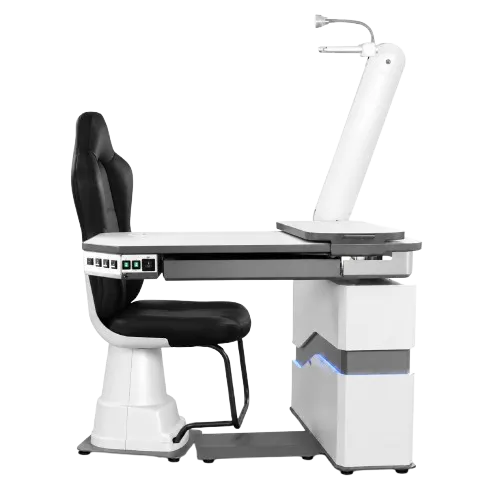

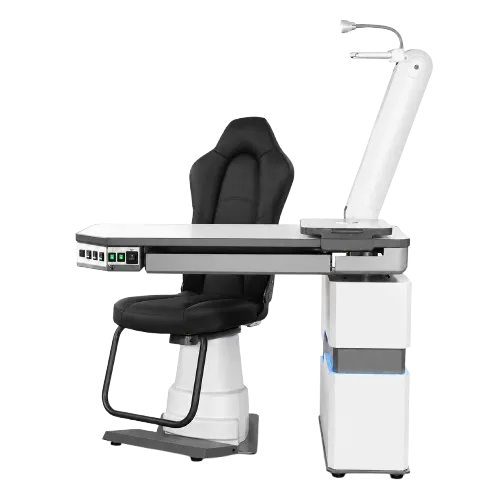

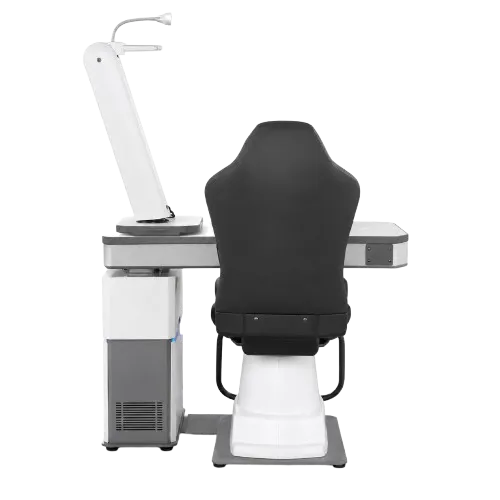

LINK CT-360

Ophthalmology outpatient clinics and hospital eye units processing high volumes of routine and specialist examinations require examination furniture that supports efficient patient throughput without compromising diagnostic precision. The CT-360 chair and stand unit's motorised seat lift from 550 to 700mm enables rapid height adjustment between patients without manual effort from clinical staff, and the 250kg seat load capacity supports patients with limited mobility during transfers. For NHS trusts and hospital procurement managers, CE certification provides the documentation baseline required for device validation and procurement compliance. Medigear.uk provides full certification documentation and pre-purchase technical support for institutional procurement submissions.

Refraction suites and optometry practices conducting comprehensive eye examinations require a chair and stand configuration that keeps instruments within precise, stable reach throughout the examination. The CT-360's mechanical swing arm provides accurate, repeatable positioning for slit lamps and other ophthalmic instruments, and the 90-degree outward-rotating table allows the operator to rotate instruments clear of the patient during examination without repositioning the chair. The rechargeable ophthalmoscope socket ensures cordless ophthalmoscopes remain charged and accessible at the point of use. Medigear.uk supplies the CT-360 to refraction practices and optometry distributors through its B2B procurement channel.

Ophthalmic imaging and specialist diagnostic suites conducting anterior and posterior segment examinations benefit from the CT-360's aerodynamic reclining range of 120 to 140 degrees, which positions patients for fundoscopy, indirect ophthalmoscopy, and other reclined examination procedures. The optional slit lamp interface extends the unit's diagnostic capability for practices requiring integrated slit lamp examination.

Domiciliary and home-care ophthalmology services sourcing functional examination furniture for outreach settings can acquire the CT-360 directly through Medigear.uk.

Electric Seat Lift from 550mm to 700mm for Ergonomic Efficiency

The CT-360's motorised seat lift provides 150mm of powered height adjustment between 550mm and 700mm, eliminating the manual effort of a hand-cranked or fixed-height chair across a full day of back-to-back patient examinations. The electric lift allows the operator to adjust patient height precisely relative to instrument positions without interrupting the examination workflow, contributing to ergonomic efficiency and reducing cumulative physical strain for clinical staff.

250kg Seat Load Capacity for Inclusive Patient Access

The CT-360's 250kg maximum seat load rating ensures the unit accommodates a broad range of adult patients without weight restrictions that could exclude bariatric patients or limit the clinical settings in which the chair can be deployed. This capacity is confirmed in the manufacturer's specification documentation available through Medigear.uk. The 100kg per armrest rating provides additional structural assurance for patients who rely on armrest support during repositioning or sustained examination positions.

90° Outward Table Rotation for Unobstructed Patient Transfer

The ABS instrument table rotates 90 degrees outwards on demand, moving mounted instruments completely clear of the patient's immediate space for safe and unobstructed patient transfer and repositioning. This rotation eliminates the instrument proximity risk during patient movement that arises with fixed-table examination chairs, and it allows clinical staff full access to both sides of the patient without requiring the patient to navigate around the equipment. The 335mm table travel distance and left/right sliding mechanism provide additional flexibility in table positioning.

Optional Slit Lamp Integration for Configuration Flexibility

The CT-360 can increase matching use of a slit lamp as an optional configuration, allowing practices and procurement teams to specify slit lamp integration only when required rather than paying for interface hardware they do not need. This optional approach provides configuration flexibility for practices with varying instrumentation requirements. Slit lamp integration availability and pricing should be confirmed with Medigear.uk at order placement.

Mechanical Swing Arm with 60° Positioning Angle

The mechanical swing arm provides a 60-degree angle for instrument positioning, delivering the precision and stability required for accurate ophthalmic instrument placement without the complexity of electronic actuation. The mechanical design gives the examiner direct tactile feedback during arm positioning, described as providing good feel and accurate positioning for confident instrument placement throughout the examination.

Aerodynamic Reclining from 120° to 140° for Posterior Segment Examination

The patient seat reclines through a 20-degree arc from 120 to 140 degrees, covering the principal reclined positions required for indirect ophthalmoscopy, fundus photography, binocular indirect ophthalmoscopy, and other posterior segment procedures. The aerodynamic reclining mechanism provides smooth, controlled position transition rather than stepped manual adjustment, supporting consistent patient positioning across examination sessions.

Rechargeable Ophthalmoscope Socket Integrated at Point of Use

The CT-360 includes a rechargeable ophthalmoscope socket built into the stand unit, ensuring cordless ophthalmoscopes are continuously charged and immediately available at the point of use without requiring a separate charging station elsewhere in the consulting room. This integrated charging capability is a practical workflow advantage in high-volume clinics where instrument battery management across multiple rooms can create delays.

Customisable Seat Colour for Practice Environment Integration

Seat colour on the CT-360 is customisable to order, allowing practices to align examination furniture with their clinic's branded colour scheme, patient environment design, or institutional décor standards, charged according to the actual customisation requested. This customisation option is particularly relevant for multi-site clinic groups procuring furniture in bulk for consistent patient experience presentation across locations.

Electric Seat Lift Range: 550mm to 700mm, 150mm Travel

The patient seat lifts electrically across a 150mm range from 550mm to 700mm, providing motorised height adjustment without manual effort. The electric lift is the primary operator ergonomic feature for high-volume examination sessions.

Maximum Seat Load: 250kg

The seat structure is rated to a maximum load of 250kg, ensuring the CT-360 is clinically appropriate for bariatric patient examinations without separate weight-limit assessment for each patient.

Seat Rotation: 45°

The seat rotates through 45 degrees, providing lateral repositioning of the patient relative to fixed instrument positions and supporting patient transfer from the chair side.

Seat Lateral Movement: 150mm

The seat moves laterally by 150mm, allowing fine positional adjustment of the patient relative to the instrument stand without moving the chair's base.

Seat Armrest Load: 100kg Each

Each seat armrest independently supports up to 100kg, providing structural load assurance for patients who use armrests as support during examination or transfer.

Seat Reclining Range: 120°–140°

The aerodynamic reclining mechanism moves the seat from 120 to 140 degrees, covering the reclined positions required for posterior segment examination procedures.

Table Material: ABS Hard Plastic, Sliding Left and Right

The instrument table is constructed from ABS hard plastic, providing a durable, cleanable surface. The table slides left and right for operator positioning flexibility and rotates 90 degrees outwards for patient access.

Table Rotation: 90° Outward

The table rotates 90 degrees outwards from the working position, clearing all mounted instruments from the patient's immediate space during transfer and repositioning.

Table Moving Distance: 335mm

The table travels up to 335mm from its home position, providing a substantial range of instrument positioning relative to the patient's seated eye position.

Table Surface: 890 mm × 405 mm, Dual-Instrument Capacity

The 890 × 405mm table surface accommodates two instruments simultaneously, supporting practices that routinely use multiple instruments per patient examination.

Swing Arm Angle: 60°

The mechanical swing arm provides a 60-degree positioning angle for instrument placement relative to the patient's eye, with direct tactile positioning feedback from the mechanical design.

Spotlight Light Source: LED 24V, 5W White Light

The integrated LED spotlight is rated at 24V and 5W, providing efficient white light illumination with long lamp life relative to conventional incandescent alternatives.

Rechargeable Ophthalmoscope Socket

A dedicated rechargeable ophthalmoscope socket is built into the stand, providing integrated charging for cordless ophthalmoscopes at the point of use without a separate charging station.

Optional Slit Lamp Interface

The CT-360 can increase matching use of a slit lamp as an optional configuration, charged according to the actual specification. Buyers should specify slit lamp requirements at order placement.

Power Supply: AC220V / 110V, 50/60Hz

The CT-360 operates on AC220V or 110V at 50Hz or 60Hz, providing dual-voltage compatibility for deployment across international clinical electrical supply environments without transformer conversion.

Seat Colour: Customisable

Seat colour is available as a customisation option charged according to the actual specification requested, allowing practices to specify a colour that matches their clinic environment.

The CT360 chair and stand unit provides a validated, full-featured ophthalmic examination platform suited to hospital ophthalmology departments, NHS eye clinics, independent optometry practices, ophthalmic imaging suites, and domiciliary ophthalmic services. Its electric seat lift from 550 to 700mm, aerodynamic reclining, 90 degree rotating ABS instrument table, mechanical swing arm, optional slit lamp interface, rechargeable ophthalmoscope socket, and 250kg seat capacity collectively address the operational requirements of institutional procurement teams, independent practice owners, and specialist distributors. CE certification confirms compliance with applicable medical device standards, and full documentation is available from Medigear.uk. Contact Medigear.uk for specifications, procurement assistance, or expert consultation.
