Visionstar SJD-C16

Product Code: DAOC-DI-2712

Two kilograms, a Toshiba tube, and a touchscreen that boots with a self-check.

Two kilograms net. The Visionstar SJD-C16 runs a Toshiba high-frequency tube at 60 kV / 2 mA and 80 kHz, with a 0.3 mm focal spot, 0.1–2.0 s timing, published total filtration and one-click RVG mode on an LCD touchscreen.

Sections

Intraoral X-ray Units

Categories

Dental And Oral Care Equipment

Condition

New

Origin

China

Seller Type

Certified Professional Seller

Size:

310 × 280 × 220 mm

CE & ISO Certified

Global Shipping

Supplier: Medigear

The Visionstar SJD-C16 is a battery-powered dental X-ray generator built around a Toshiba high-frequency tube insert. The generator runs at 80 kHz with a rated 60 kV tube voltage and 2 mA tube current, described in the manufacturer literature as built-in adjustable — confirm the available adjustment range at order so exposure protocols can be planned properly. Focal spot size is 0.3 mm, the specification that sets the geometric sharpness ceiling at the receptor.

Total filtration is published at 1.75 mm aluminium plus 1.0 mm aluminium. That is a figure worth noting on its own terms: total filtration, rather than the inherent value alone, is the number a Radiation Protection Adviser needs when assessing beam quality against UK dental guidance, and having it stated in the manufacturer's own data sheet shortens the commissioning conversation considerably.

Exposure timing runs from 0.1 to 2.0 seconds through an LCD touchscreen. A one-click RVG digital mode presets the unit for direct sensor work, so a practice running digital receptors moves between patients without stepping through a settings menu. The interface also carries a boot self-check routine that runs at power-up and reports faults automatically, which gives the practice a daily equipment status indication to sit alongside its documented quality assurance programme.

Protection features are built into the electronics: temperature control on the tube head, plus high-voltage and low-voltage protection on the supply side. The unit draws 25.2 VAC at 2.0 A, and the lithium charger accepts 100–240 VAC at 50–60 Hz and 1.2 A, so it runs on UK mains directly.

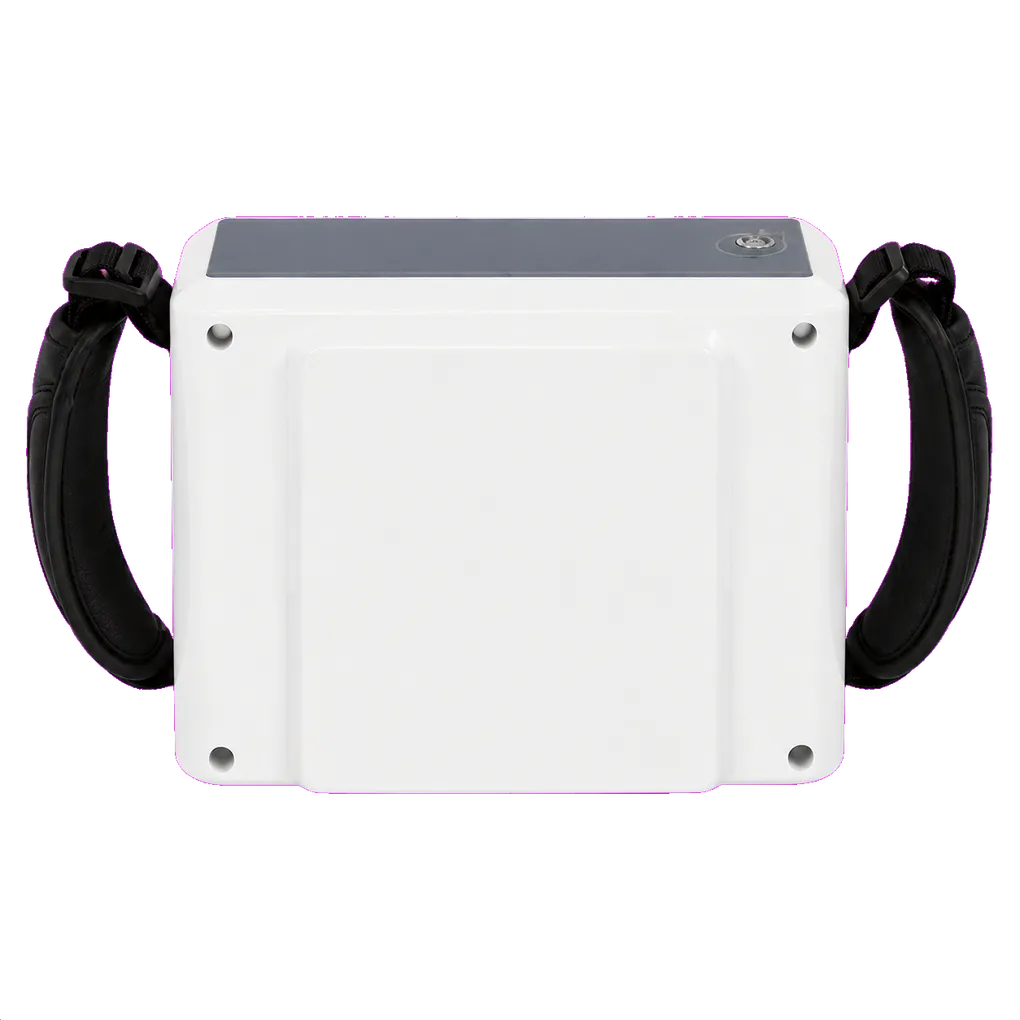

Net weight is 2.0 kg, packed into a 310 × 280 × 220 mm carton, with a moulded hand strap across the housing for single-hand carrying. Medigear.uk can arrange supply, delivery, commissioning, staff familiarisation and service cover for the SJD-C16 across the United Kingdom.

Intraoral radiography carries the diagnostic load in UK general dentistry, and the SJD-C16 is configured for that daily volume. It supports bitewing caries detection, periapical assessment of apical pathology, endodontic working-length and obturation verification, periodontal bone-level review, and root morphology assessment ahead of extraction. A 0.3 mm focal spot with 80 kHz high-frequency drive maps onto region-by-region protocols agreed with a Medical Physics Expert and recorded in local diagnostic reference levels.

Practices running direct digital sensors are the clearest fit. One-click RVG mode removes menu navigation from the between-patient sequence, which matters most in high-throughput settings — NHS general practice running full UDA lists, or a corporate group where several clinicians share equipment across surgeries and consistency of technique is a governance question rather than a personal preference.

Community dental services and special care dentistry teams working under NHS commissioning need equipment that reaches the patient and that one person can carry. At 2.0 kg net, a single clinician can manage the unit alongside a portable kit bag on a domiciliary round. People living with advanced dementia, profound learning disability or palliative care needs are frequently unable to transfer to a fixed dental chair, and assessment at the bedside is the practical route to diagnosis — provided off-site radiation protection arrangements have been agreed with the practice's Radiation Protection Adviser in advance.

Paediatric dentistry benefits from a small focal spot and short exposure values. Orthodontic practices use periapicals for root resorption monitoring through active treatment. Dental education, outreach programmes, prison dental services and expedition dentistry all rely on battery-driven equipment with straightforward daily status checks.

Guidance from the College of General Dentistry and UKHSA Dental X-ray Protection Services remains the reference point UK practices work to, alongside HSE enforcement of IRR17.

Total filtration stated in the data sheet

Having the total filtration figure published, rather than the inherent value alone, means your Radiation Protection Adviser starts commissioning from a known position. The stated 1.75 mm Al plus 1.0 mm Al sits above the 1.5 mm aluminium equivalent minimum UK dental guidance applies to sets up to 70 kV, and the RPA's half-value layer measurement becomes a confirmation step.

A tube with published characteristics

The Toshiba high-frequency insert gives service engineers and radiation protection advisers an identifiable component with available beam quality data and a known parts route. Traceable components make critical examination and periodic testing straightforward conversations.

Two kilograms, carried by one person

A 2.0 kg net weight puts the unit comfortably within single-clinician handling for a full list or a domiciliary round, alongside whatever else has to travel. Weight is the specification that decides whether carried radiography is realistic on a community visit.

RVG work reduced to one action

One-click digital mode presets the unit for direct sensor exposure, removing menu navigation from the between-patient sequence. Fewer interactions at the chair means less scope for a wrong setting and a cleaner operating routine to document for training records.

A daily equipment status indication

The boot self-check runs at power-up and reports faults automatically, giving the practice a status signal at switch-on to sit alongside its documented quality assurance programme rather than waiting for the next scheduled test.

Protection built into the electronics

Temperature control on the tube head and high-voltage and low-voltage protection on the supply side guard against thermal stress through heavy exposure runs and against mains supply irregularities during charging.

A touchscreen interface in the operator's sightline

An LCD touch panel presents the active exposure value and machine state clearly, so the setting is confirmed before the shot with the unit already held in position.

UK supply, commissioning and service through one route

Medigear.uk can arrange listing, supply, delivery, installation, commissioning, staff familiarisation, service cover, planned maintenance and quotations for the SJD-C16 across the United Kingdom, with site survey support where a practice wants the radiation protection conversation scoped before order.

Toshiba high-frequency tube insert

The tube assembly is supplied by an established manufacturer with published characteristics, giving a definite reference point for beam quality data, servicing and part replacement.

0.3 mm focal spot

A small focal spot limits geometric unsharpness at the receptor, underpinning fine trabecular and apical detail visibility on periapical views.

Total filtration 1.75 mm Al plus 1.0 mm Al

Total filtration is published in the manufacturer data sheet, giving the Radiation Protection Adviser the figure needed for beam quality assessment at commissioning.

80 kHz high-frequency generator

High-frequency drive produces a near-constant potential waveform, delivering steadier output per exposure and a beam carrying proportionally fewer low-energy photons.

60 kV / 2 mA rating, built-in adjustable

The manufacturer describes tube kV and mA as adjustable within the unit; confirm the available range and corresponding output data at quotation.

0.1–2.0 second exposure range

A twenty-fold span of exposure time covers direct digital sensors at the short end through to phosphor plate and film technique at the upper limit.

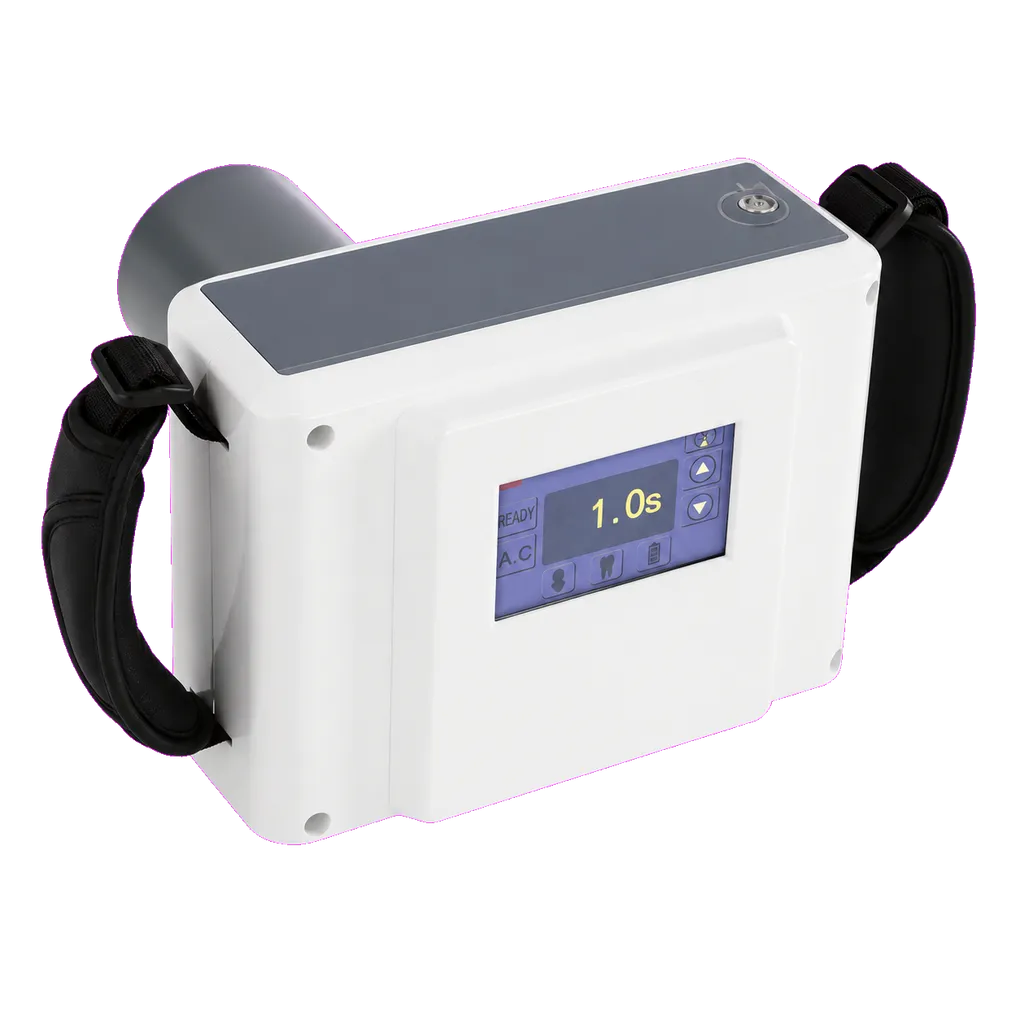

LCD touchscreen interface

A touch panel presents the active exposure value and machine state, with direct selection made on the screen itself.

One-click RVG digital mode

A single action presets the unit for direct digital sensor work, shortening the between-patient sequence in a digital surgery.

Boot self-check with automatic fault reporting

A self-diagnostic routine runs at power-up and reports detected faults, giving a daily equipment status indication at switch-on.

Tube head temperature control

Built-in thermal management guards the tube assembly against stress during a heavy consecutive run of exposures.

High-voltage and low-voltage protection

Supply-side protection circuitry guards the electronics against mains irregularities during charging and operation.

Custom high-capacity lithium battery

A manufacturer-specified lithium pack powers the unit away from a fixed power position, charged from a 100–240 VAC 50–60 Hz supply at 1.2 A.

2.0 kg net weight

Published net weight, the figure that determines whether one clinician can realistically carry the unit through a full list or a domiciliary round.

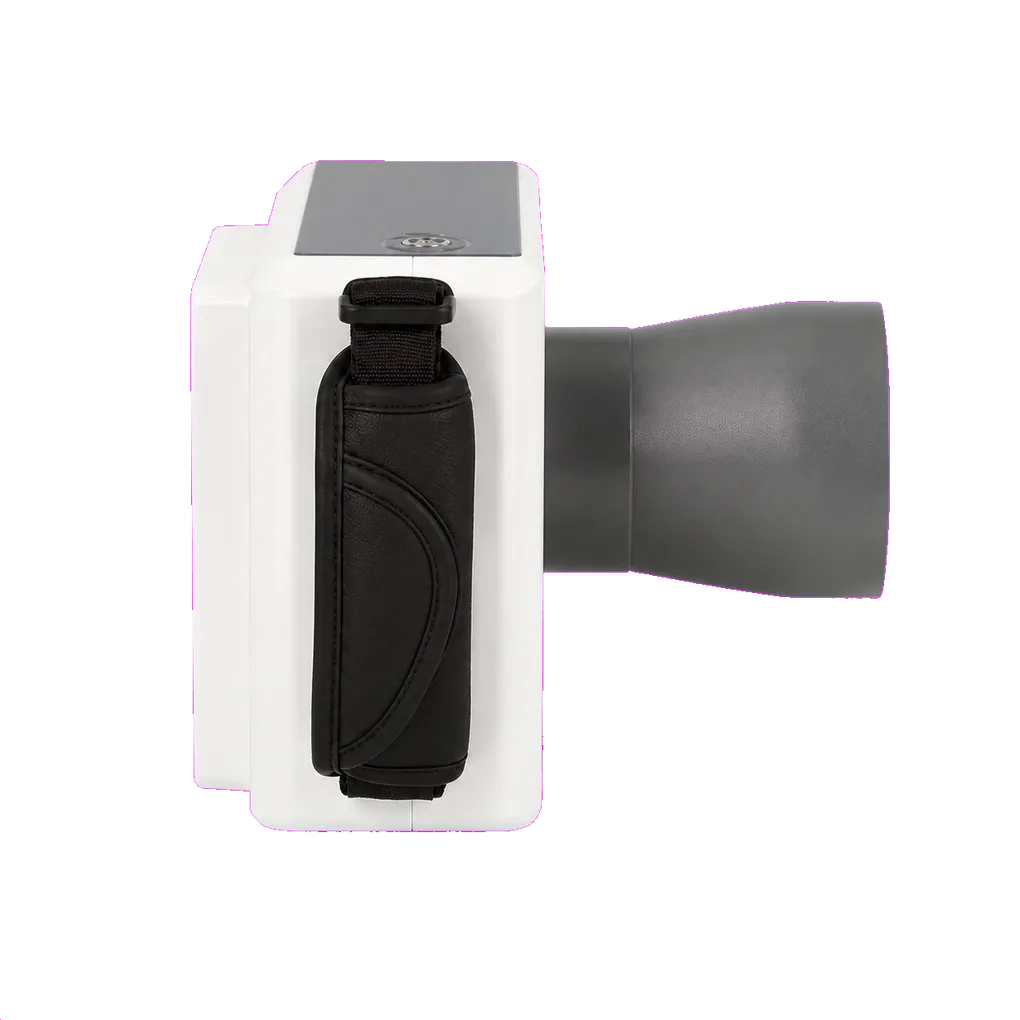

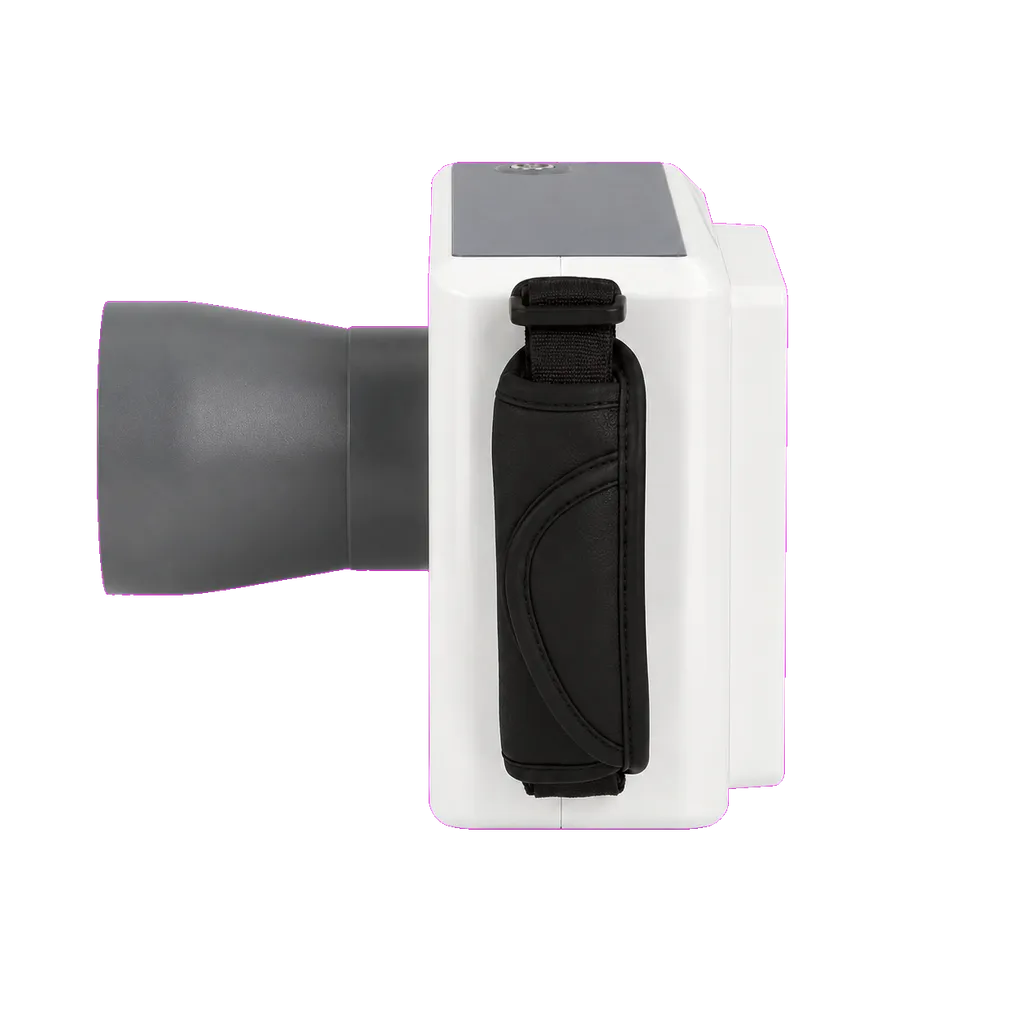

Moulded hand strap

An integrated strap across the housing supports single-hand carrying and steadier beam alignment while the exposure is taken.

The Visionstar SJD-C16 gives UK dental teams a 2.0 kg battery-powered X-ray generator built around a Toshiba high-frequency tube insert, a 0.3 mm focal spot, an 80 kHz generator drive, a 0.1–2.0 second exposure range, published total filtration of 1.75 mm Al plus 1.0 mm Al, an LCD touchscreen with one-click RVG mode, boot self-diagnostics and built-in thermal and voltage protection. It fits NHS and private general practice, high-throughput digital surgeries, endodontic and referral clinics, paediatric and special care dentistry, community dental services and outreach programmes. Medigear.uk can arrange supply, delivery, commissioning, staff familiarisation, service cover and planned maintenance across the United Kingdom, and can arrange for the manufacturer's tube, filtration and output documentation to accompany your quotation for your Radiation Protection Adviser's review. Contact the Medigear.uk team for pricing, lead times, sensor pairing options and configuration enquiries.

FAQ

Frequently Asked Questions

Everything buyers need to know about sourcing medical equipment through MediGear.

Inherent filtration describes what is built into the tube assembly; total filtration describes the whole beam path, including any added filtration, and it is the figure your Radiation Protection Adviser actually works from. UK dental guidance sets a minimum total filtration for sets operating up to 70 kV, commonly expressed as 1.5 mm aluminium equivalent. The published 1.75 mm Al plus 1.0 mm Al sits above that threshold. Your RPA will still measure the half-value layer at critical examination, but starting from a stated total figure makes that assessment a confirmation rather than an investigation.

A tube from an established manufacturer with published characteristics gives your Radiation Protection Adviser and service engineer a definite reference point for beam quality data, half-value layer figures, expected radiological test results and replacement part sourcing. Ask for the tube datasheet with your quotation so your RPA has it before commissioning. Medigear.uk can arrange for that documentation to be requested from the manufacturer.

It presets the unit for direct digital sensor work in a single action, so an operator moving between patients does not step through a settings menu for each exposure. Fewer interactions at the chair means less scope for a wrong setting under time pressure and a shorter, cleaner operating sequence to document in your IR(ME)R training records. Confirm the specific sensor and imaging software pairing at order so the preset can be checked against your receptor at commissioning.

The unit runs a self-diagnostic routine at power-up, and reports detected faults automatically. That gives the practice a daily status indication at the point the equipment is switched on, which is a useful input to the documented quality assurance programme IRR17 requires. It supplements rather than replaces that programme — routine QA testing, periodic radiological testing and annual electro-mechanical inspection all still apply on your RPA's schedule.

The tube head carries built-in temperature control, and the supply side carries high-voltage and low-voltage protection. In practice, these guard against thermal stress during a heavy run of exposures and against damage from mains supply irregularities during charging. They are equipment protection features, not radiation protection features — operator and patient dose remain governed by exposure factors, collimation, receptor speed, shielding and operator position.

The manufacturer describes the tube kV and mA as built-in adjustable, but the literature does not publish the adjustment range. Ask for the available settings and the corresponding output data at quotation, since your Medical Physics Expert will need them to set region-by-region protocols and your local diagnostic reference levels. Medigear.uk can arrange for the manufacturer to supply that detail with your quotation.

The Ionising Radiations Regulations 2017 require employers carrying out dental X-ray work to register with the Health and Safety Executive, appoint a Radiation Protection Adviser, nominate a Radiation Protection Supervisor and complete a radiation risk assessment. The Ionising Radiation (Medical Exposure) Regulations 2017 add the appointment of a Medical Physics Expert, justification and optimisation of each exposure, and documented training for referrers, practitioners and operators. A critical examination is required when the equipment is put into service. These duties sit with the employer.

Dental X-ray equipment is subject to routine quality assurance and periodic radiological testing under IRR17, alongside annual electro-mechanical inspection. UK service providers commonly apply an annual radiological testing interval to hand-carried units, and a critical examination is required at installation. Your Radiation Protection Adviser sets the schedule that applies to your registration. Medigear.uk can arrange service cover, planned maintenance and inspection scheduling alongside supply.

Warranty terms are set and issued by the seller or manufacturer, and typically run 12–24 months for this equipment class. Battery packs are commonly warranted on a shorter cycle than the tube head, and touchscreen assemblies may be covered separately again. Confirm the exact terms, the parts covered and the battery position at quotation. Medigear.uk can arrange extended service cover and planned maintenance for UK customers.
