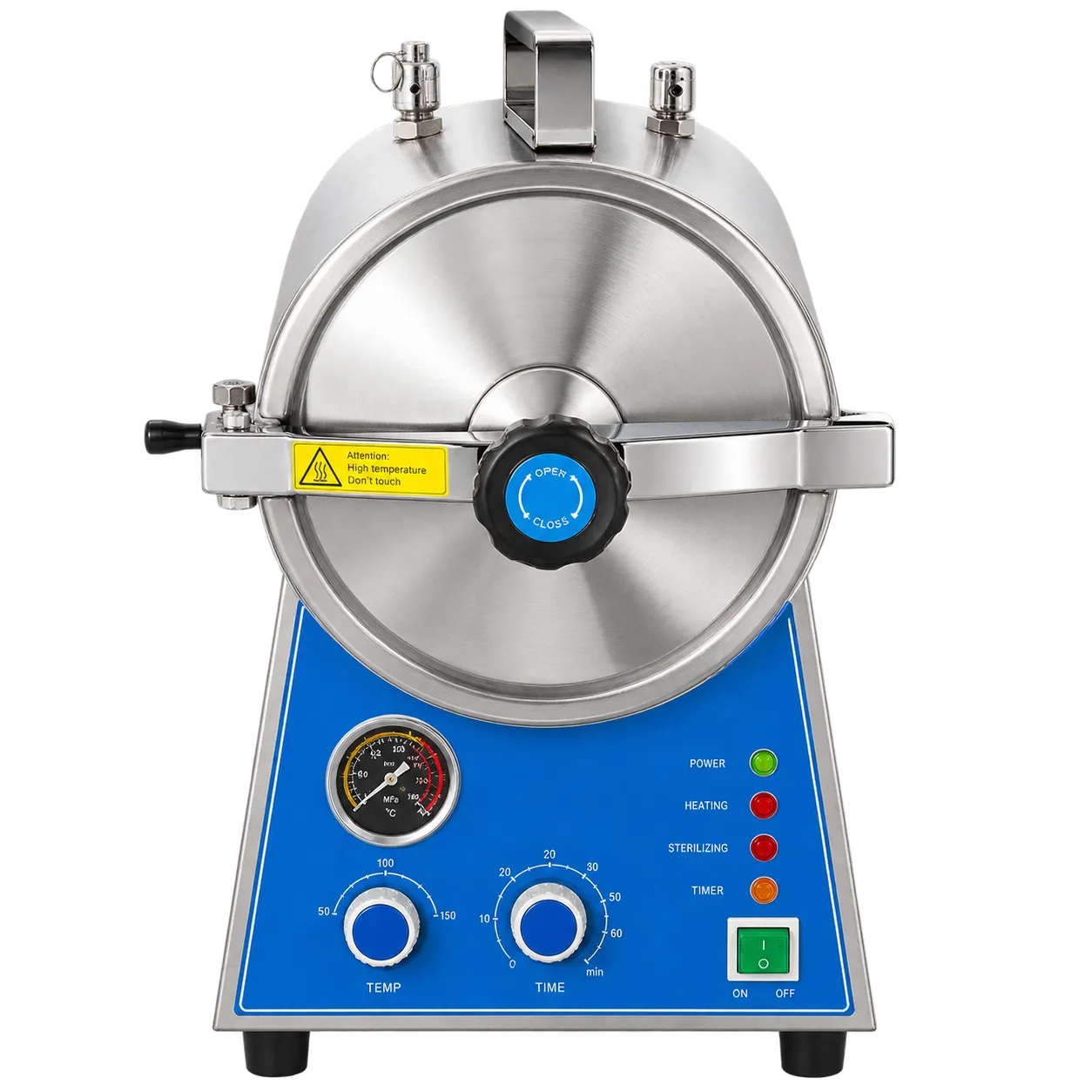

Visionstar TM-T16J

Sixteen Litre Chamber

Sterilising chamber volume is 16L in a chamber of 250 by 360mm, the smallest capacity offered across the bench models in this particular range.

Four to Six Minute Cycle

The manufacturer states rapid sterilising in four to six minutes, the same figure quoted for the larger bench models, so smaller capacity costs nothing in turnaround.

Small Footprint

Unit dimensions are 545 by 328 by 423mm with a gross weight of 17kg, which is what allows siting in rooms where a larger machine would not fit on the worktop.

Preset Temperature and Time

Sterilising temperature and time can both be preset, with adjustment across 105 to 134 degrees and a timer running from 0 to 60 minutes on this unit.

No Steam Discharge

A steam water inner circulation system means no steam is discharged, which the manufacturer relates to a clean and dry environment for sterilising work.

Automatic Air Exhaust

Cool air is exhausted from the chamber automatically, which is what allows steam to reach a load instead of being held away from it by trapped air.

Three Sterilising Plates

Three stainless steel sterilising plates of 340 by 200 by 30mm are supplied, so a load separates across shelves even within a chamber of this size.

Protections and Signalling

Over temperature and over pressure auto-protection is fitted with safe protection of water lacking, an indicator light shows the working state, and a beep sounds once complete.

Single Room Practices

The whole argument for this model is footprint. A practice operating from one treatment room, or a premises where the worktop already carries everything else, often cannot accommodate a larger bench autoclave at all. At 545 by 328mm the unit occupies a corner rather than a whole stretch of counter, and that difference frequently decides whether proper instrument processing happens on the site at all or not.

Podiatry, Acupuncture and Chiropody

These disciplines all work with small instrument sets in modest premises, which is exactly the combination this chamber suits well. A 16L volume with three shelves holds a working day's instruments without the wasted space of a larger chamber, and a four to six minute cycle returns a set between two appointments rather than requiring duplicate sets to be held simply to cover the wait.

Beauty and Studio Settings

Settings outside conventional healthcare face much the same decontamination obligations and rarely have a room to spare for them. Preset temperature and time together mean a consistent cycle runs whoever is on duty, and no steam discharge keeps the working area dry, which matters greatly where a treatment couch may be a few feet from the steriliser itself in a small room.

Rooms Where Extraction Is Impractical

Because no steam at all is released, nothing needs installing above the unit. For rented premises, for listed buildings or any room where ductwork is not an option, that removes the obstacle that usually prevents a steriliser being sited sensibly at all. The machine then goes where the instruments actually are, and not where the ventilation happens to be.

Fits Where Others Will Not

Every specification on this page is secondary to the dimensions. A practice that physically cannot house a larger bench autoclave is not really comparing chamber volumes, it is deciding whether to process instruments properly on the site or send them away elsewhere. At 545 by 328 by 423mm and just 17kg, this unit answers that question, and for the premises it suits, that is very often the only comparison that really matters.

No Capacity Penalty in Speed

The four to six minute cycle is the same figure quoted for the larger bench models in the range. A smaller chamber therefore means fewer instruments per load, and not a slower load, so a practice can still return a set between consecutive patients. That is worth stating plainly, because buyers reasonably assume the smallest model in a range must have been compromised somewhere rather less visible than this.

Sited Without Ventilation Work

No steam discharge and a small footprint together mean the unit goes on a worktop in the room where instruments are used, with nothing installed above it. For premises that cannot alter the fabric of the building, being able to site the equipment sensibly is precisely what makes properly compliant processing practical, rather than merely aspirational for a small premises.

The Visionstar TM-T16J holds 16L in a chamber of 250 by 360mm and completes a cycle in a stated four to six minutes. Working pressure is 0.22 MPa, working temperature 134 degrees, temperature adjustment covers 105 to 134 degrees, the timer runs 0 to 60 minutes and heat average is within plus or minus 1 degree. Three stainless sterilising plates of 340 by 200 by 30mm are supplied, the chamber is stainless steel, and a steam water inner circulation system means no steam discharge. The unit measures 545 by 328 by 423mm and weighs 17kg gross.

This page states what the technical data states for this model. The electrical specification is not reproduced here, and accessories, cycle documentation, configuration and condition do not appear on the material held. Nothing here should be read as a claim about testing or regulatory approval, and a pressure vessel of this kind requires appropriately trained operators.
