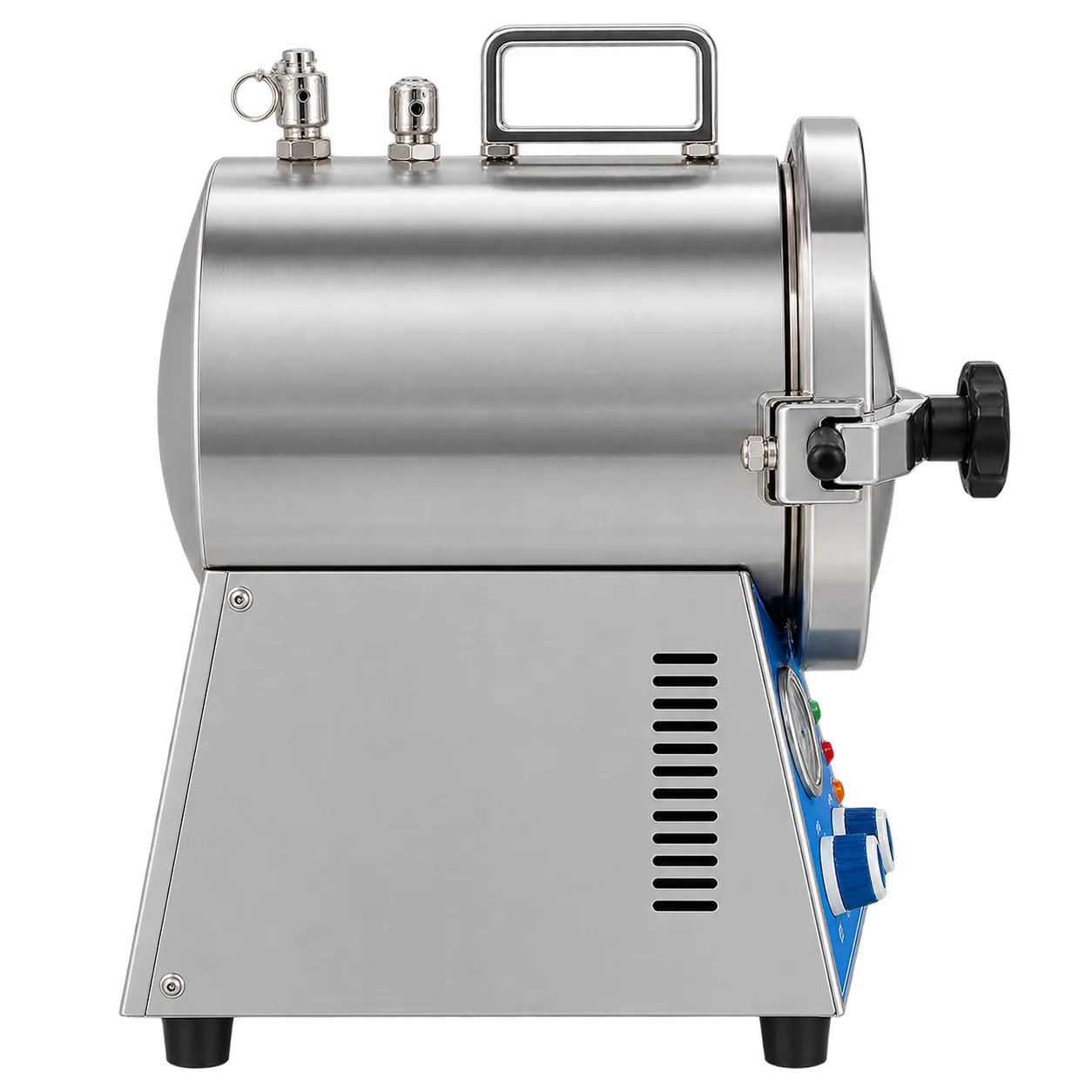

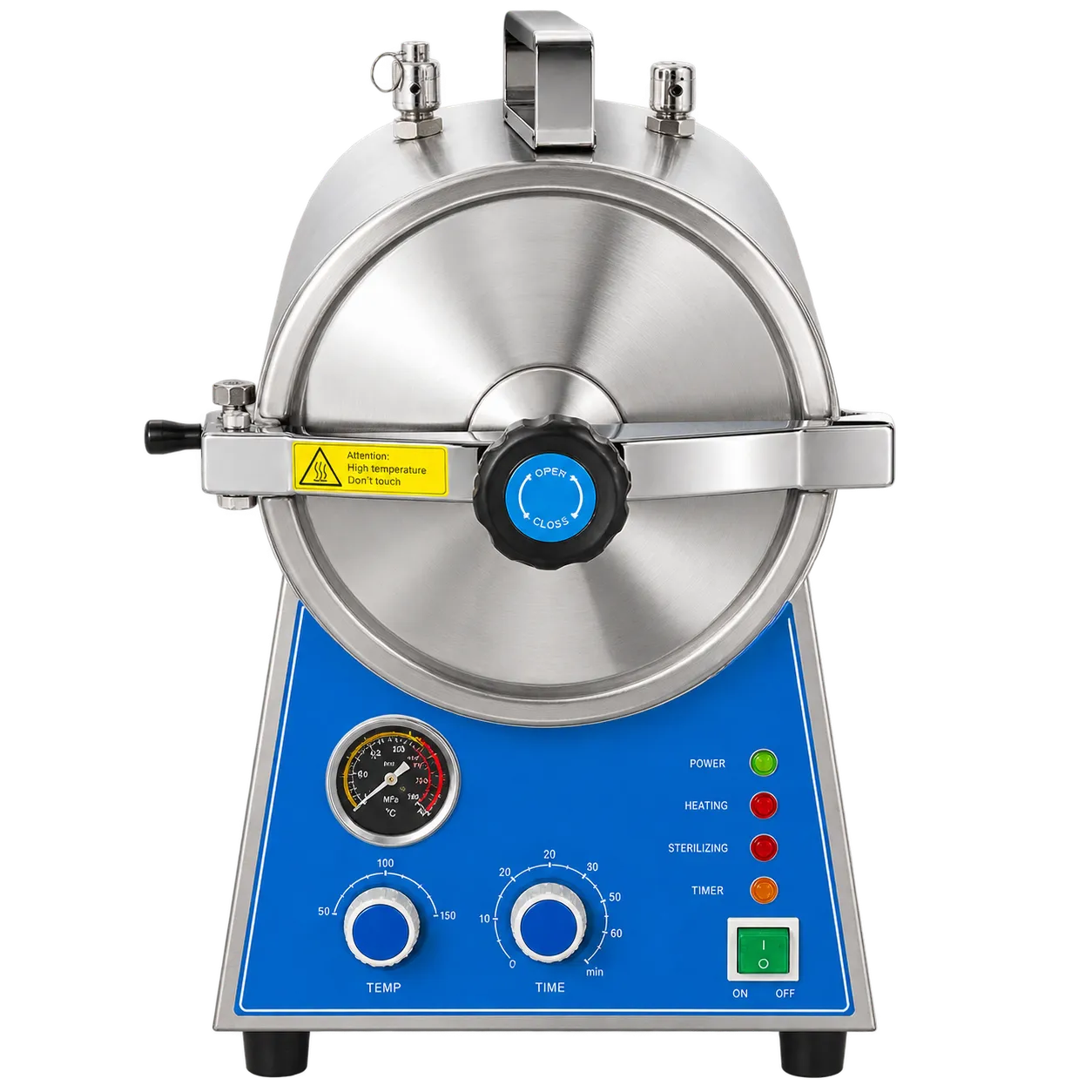

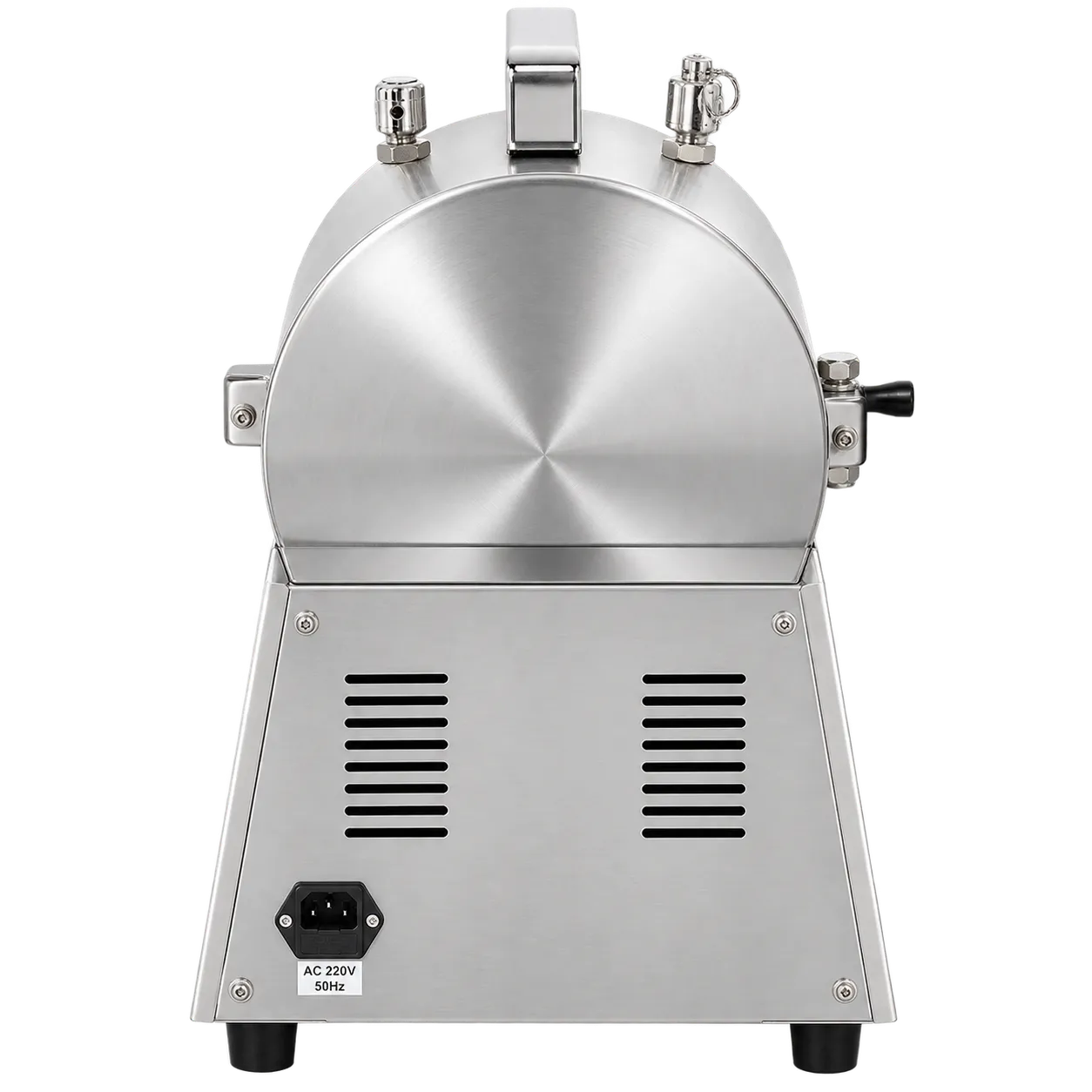

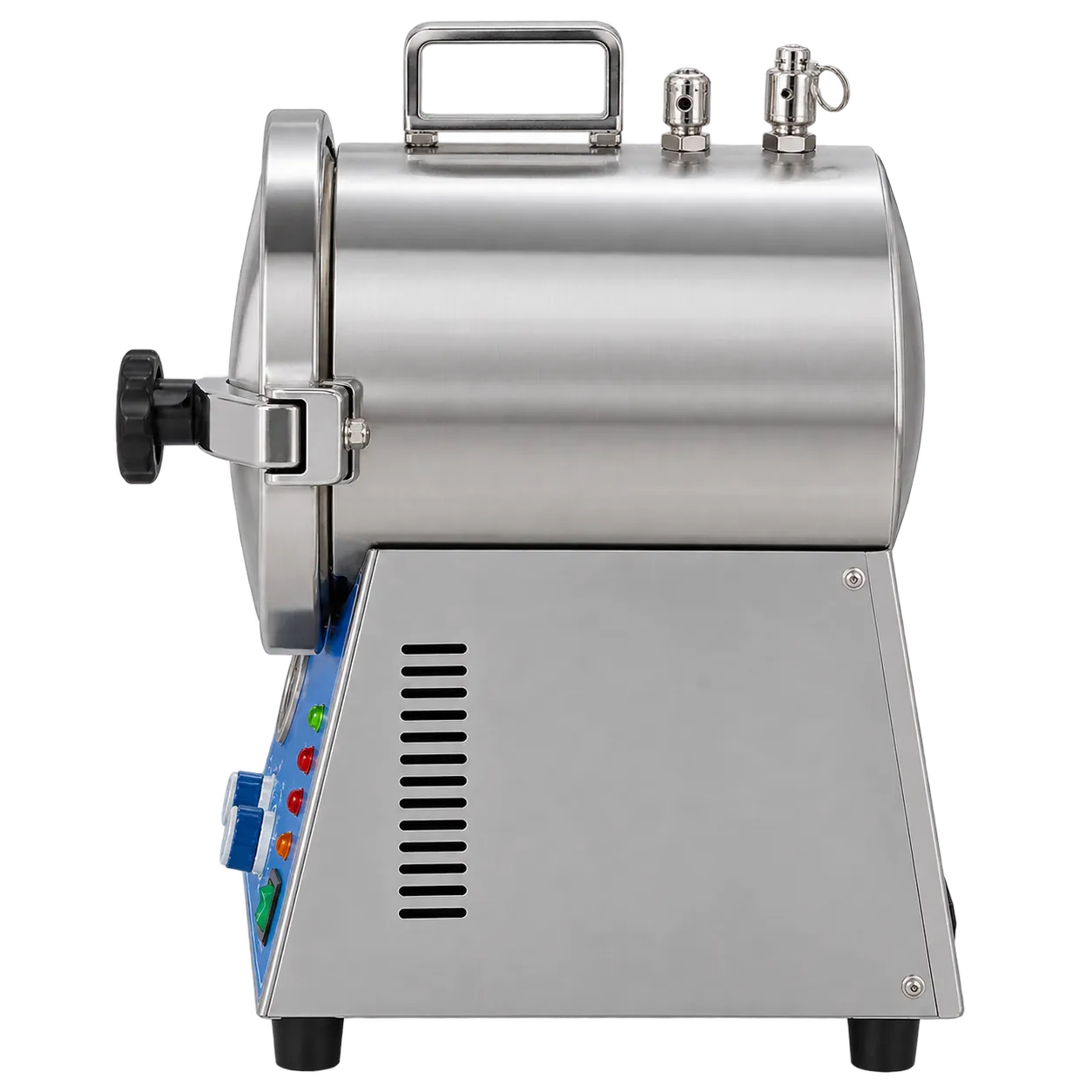

Visionstar TM-T24J

Twenty Four Litre Chamber

Sterilising chamber volume is 24L in a chamber of 270 by 410mm, the single specified difference between this model and the smaller capacity version of the same unit.

Wider and Deeper Together

Both chamber diameter and depth increase over the smaller model, so wider instrument sets and longer items are each accommodated rather than simply more short ones.

Four to Six Minute Cycle

The manufacturer states rapid sterilising in four to six minutes, unchanged from the smaller model, so capacity rises with no penalty at all in turnaround speed.

Preset Temperature and Time

Sterilising temperature and time can both be preset, with adjustment across 105 to 134 degrees and a timer running from 0 to 60 minutes on this particular unit.

Three Sterilising Plates

Three stainless steel sterilising plates of 340 by 200 by 30mm are supplied, so a load separates across shelves rather than heaping into a single space.

No Steam Discharge

A steam water inner circulation system means no steam is discharged, which the manufacturer relates to a clean and dry environment for sterilising work.

Automatic Air Exhaust and Protection

Cool air is exhausted automatically, with over temperature and over pressure auto-protection fitted alongside safe protection of water lacking on the unit.

Stainless Chamber and Signalling

The chamber is made of stainless steel, an indicator light shows the working state, and the unit shuts off automatically with a beep once sterilising is complete.

Practices That Have Outgrown a Small Chamber

The reason to choose this version is that both dimensions increase. A practice finding its instrument sets no longer fit comfortably, whether because trays are too wide or items too long, gains on both counts here rather than only on volume. That is worth checking against the actual sets in use before deciding between the two versions of this particular unit, since the answer is usually obvious once the sets are measured.

Busier Dental and Podiatry Practice

A four to six minute cycle with more chamber to fill means more instruments processed in the same time. Where a practice runs consecutive appointments and cycles its sets continuously, the additional volume converts directly into fewer cycles across a working day, and the capital saved on duplicate instrument sets is frequently the real argument for buying a rapid steriliser at all.

Treatment Rooms Without Extraction

No steam discharge matters more for a worktop unit than for a vessel in a plant room, because the machine sits where people are working. A unit that recirculates rather than venting keeps the treatment room dry and removes any need for extraction above it, which is often what decides whether a steriliser can be sited in a particular room at all in the first place.

Veterinary and Studio Settings

Veterinary instrument sets and studio equipment both tend toward bulkier items, and both cycle constantly through a working day. Stainless construction with automatic over temperature, over pressure and water shortage protection addresses the practical reality that a worktop unit runs repeatedly with limited supervision while staff attend to their other duties.

Capacity in Both Dimensions

Unlike a chamber that simply gets longer, this model gains diameter as well as depth, so it takes wider trays and longer instruments alike. That is a considerably more useful gain than a litre figure alone conveys, because an instrument set is defeated by whichever single dimension runs out first. For anyone choosing between the two versions, measuring the actual trays in use answers the question rather faster than comparing volumes ever does.

Nothing Given Up for the Extra Volume

Cycle time, working pressure, temperature range, timer, protections and construction are identical to the smaller model. A practice choosing the larger chamber therefore keeps the same four to six minute turnaround and the same operating behaviour, which is worth stating quite plainly because buyers reasonably assume a bigger chamber means a longer wait, or else a compromise made somewhere rather less visible.

Sited Without Ventilation Work

A 560 by 350 by 500mm footprint and no steam discharge together mean the unit goes on a worktop in the room where the instruments are used, with no extraction installed above it. For premises that cannot dedicate a separate decontamination room, being able to site the equipment sensibly is precisely what makes properly compliant processing practical, rather than merely aspirational, for a small premises.

The Visionstar TM-T24J holds 24L in a chamber of 270 by 410mm and completes a cycle in a stated four to six minutes. Working pressure is 0.22 MPa, working temperature 134 degrees, temperature adjustment covers 105 to 134 degrees, the timer runs 0 to 60 minutes and heat average is within plus or minus 1 degree. Three stainless sterilising plates of 340 by 200 by 30mm are supplied, the chamber is stainless steel, and a steam water inner circulation system means no steam discharge. The unit measures 560 by 350 by 500mm and weighs 20kg gross.

The difference between this model and its companion is chamber capacity, in both diameter and depth, and nothing else on the data supplied. The electrical specification is not reproduced here, and accessories, cycle documentation, configuration and condition do not appear on the material held. Nothing here should be read as a claim about testing or regulatory approval, and a pressure vessel of this kind requires appropriately trained operators.

If your practice processes wider or longer instrument sets, or simply needs more capacity at the same turnaround speed, speak to Medigear.uk. As a verified medical equipment supplier working across medical, dental, rehabilitation and aquatic therapy settings, the team will confirm whether this chamber suits the instrument sets you actually run.
